Custom Pin Manufacturing
(High-Precision & Made-to-Order)
We manufacture high-precision custom pins according to customer drawings, dimensions, tolerances, materials, and application requirements.
Locating Pin |
Guide Pin |
Ejector Pin |
Dowel Pin |
Core Pin |
Stepped Pin |
Inspection / Plug Gauge Pin |
Custom Special Pin
Common Issues with Off-the-Shelf Pin
Common Issues with Off-the-Shelf Pin
× Dimensional Inaccuracy:
Standard pins may not meet the specific dimensions or tight tolerance requirements defined in customer drawings.
Standard pins may not meet the specific dimensions or tight tolerance requirements defined in customer drawings.
× Poor Concentricity:
Different diameters or features of the pin may not share the same center axis, affecting alignment and precision during assembly.
Different diameters or features of the pin may not share the same center axis, affecting alignment and precision during assembly.
× Poor Circularity / Roundness:
Standard pins may not provide sufficient circularity or roundness for applications requiring high-precision fit and positioning.
Standard pins may not provide sufficient circularity or roundness for applications requiring high-precision fit and positioning.
× Inconsistent Lot Quality:
Pins supplied under the same size specification may vary from piece to piece in dimensions, roundness, concentricity, or other critical characteristics. As a result, some pins may meet the required specifications while others from the same lot may not be suitable for precision applications.
Pins supplied under the same size specification may vary from piece to piece in dimensions, roundness, concentricity, or other critical characteristics. As a result, some pins may meet the required specifications while others from the same lot may not be suitable for precision applications.
× Limited Geometry Options:
Standard pins may not support special geometries such as stepped profiles, tapered sections, multiple diameters, or other application-specific features required by the drawing.
Standard pins may not support special geometries such as stepped profiles, tapered sections, multiple diameters, or other application-specific features required by the drawing.
× Limited Special Sizes:
Specific diameters, lengths, tolerances, or non-standard dimensions may not be readily available as standard off-the-shelf products.
Specific diameters, lengths, tolerances, or non-standard dimensions may not be readily available as standard off-the-shelf products.
× Material & Application Limitations:
Off-the-shelf pins may not be available in the material or with the properties required for specific operating conditions and specialized applications.
Off-the-shelf pins may not be available in the material or with the properties required for specific operating conditions and specialized applications.
Overcome Limitations
with High-Precision
Custom Manufacturing & in Thailand
Made-to-Order according to your drawings with expert
technical support:
MINIMUM ORDER QUANTITY
MOQ starts at just
Made-to-Order • Higher Quantity, Lower Unit Price
10
PIECES
✓

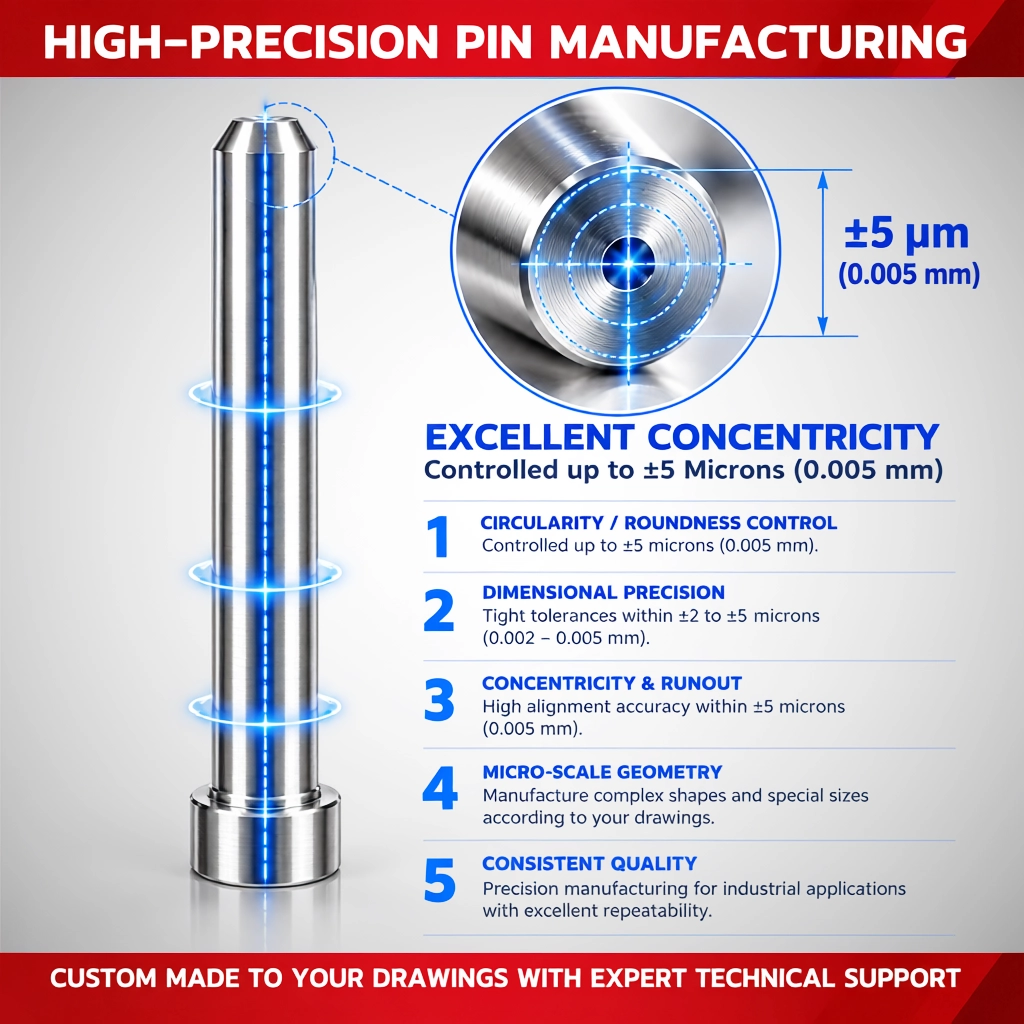

Roundness / Circularity Control:
Controlled up to 5 microns (0.005 mm).
✓
Dimensional Precision:
Tight tolerances within ±2 to ±5 microns (0.002 – 0.005 mm).
✓
Concentricity & Runout:
High alignment accuracy within ±5 microns (0.005 mm).
✓
Global Standard Quality:
Matches major international brands without long overseas shipping delays.
✓
Fully Customizable:
100% tailored dimensions, shapes, and custom specifications.
